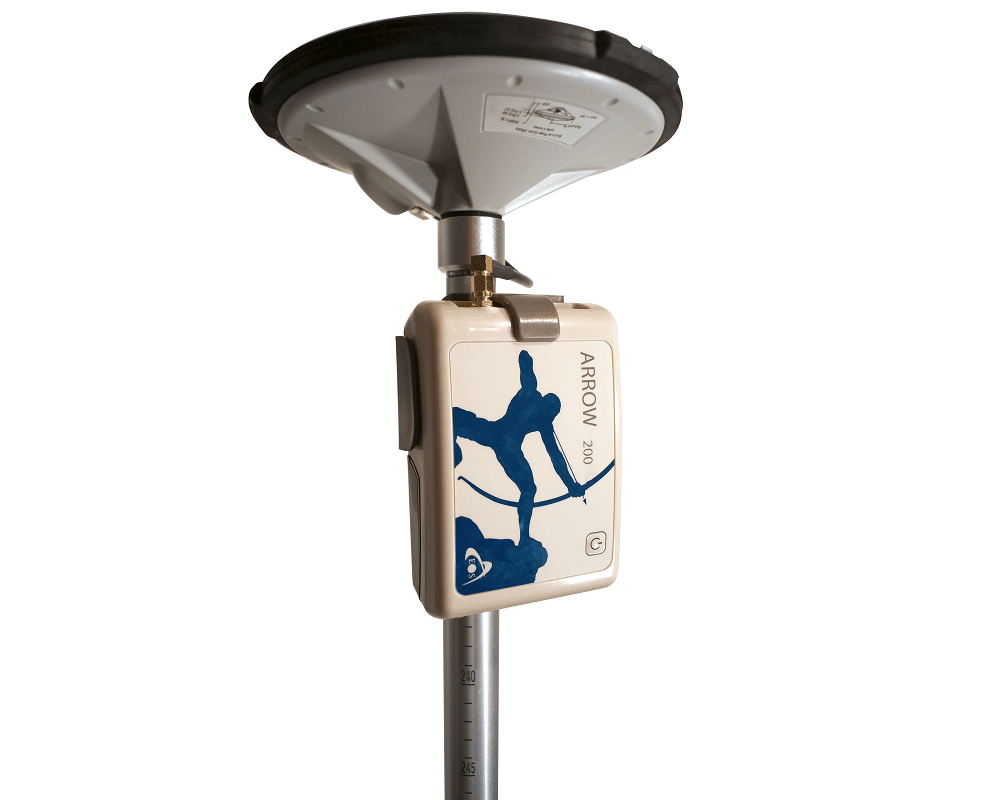

Eos – Arrow 200

WORLD’S FIRST DEVICE-AGNOSTIC RTK RECEIVER

Designed for use across multiple platforms, the Arrow 200 provides the ultimate in flexibility for GIS and mapping companies. Transforming free GNSS and SBAS signals into submeter-level location data, the Arrow 200 provides 1cm accuracy. Anywhere in the world – on any device, in real time, without post processing.

Incorporating premium features that puts it amongst the highest performing receivers in the world. The Arrow 200 supports all existing and future GNSS and SBAS constellations worldwide. A firm favourite across the utilities, environmental and asset industries. The Arrow 200 uses Bluetooth technology to feed 1cm RTK accuracy to every app on your Android, iOS or Windows device. Making it obsolete-proof and portable across platforms.

Please talk to us about project pricing.

Categories: ,

Description

Channels: 372
GNSS: GPS, SBAS, QZSS, GLONASS, Galileo, BeiDou
Horizontal Accuracy:
RTK (<50km) – 1cm + 1ppm
DGNSS – <0.3m
SBAS – <0.3m
Initialisation: <60 seconds
Interface: Bluetooth
USB 2.0
Optional: Serial port
10 Hz or 20 Hz Output rate
Standard Accessories:

Li-Ion Battery Pack (Field replaceable)
12VDC Power Supply
USB cable
L1/L2, L-Band GNSS Antenna
Pole Bracket and Clamp
Hard Shell Carrying Case
Antenna Cable
Antenna Mounting Plate

Battery: 9+ hours
Durability: IP 67 waterproof
Operating temperature: -40ºC to +85ºC
Weight: 542g
Dimensions: 125mm x 84mm x 42mm
69mm x 22mm (antenna)
Warranty: 2 year warranty
