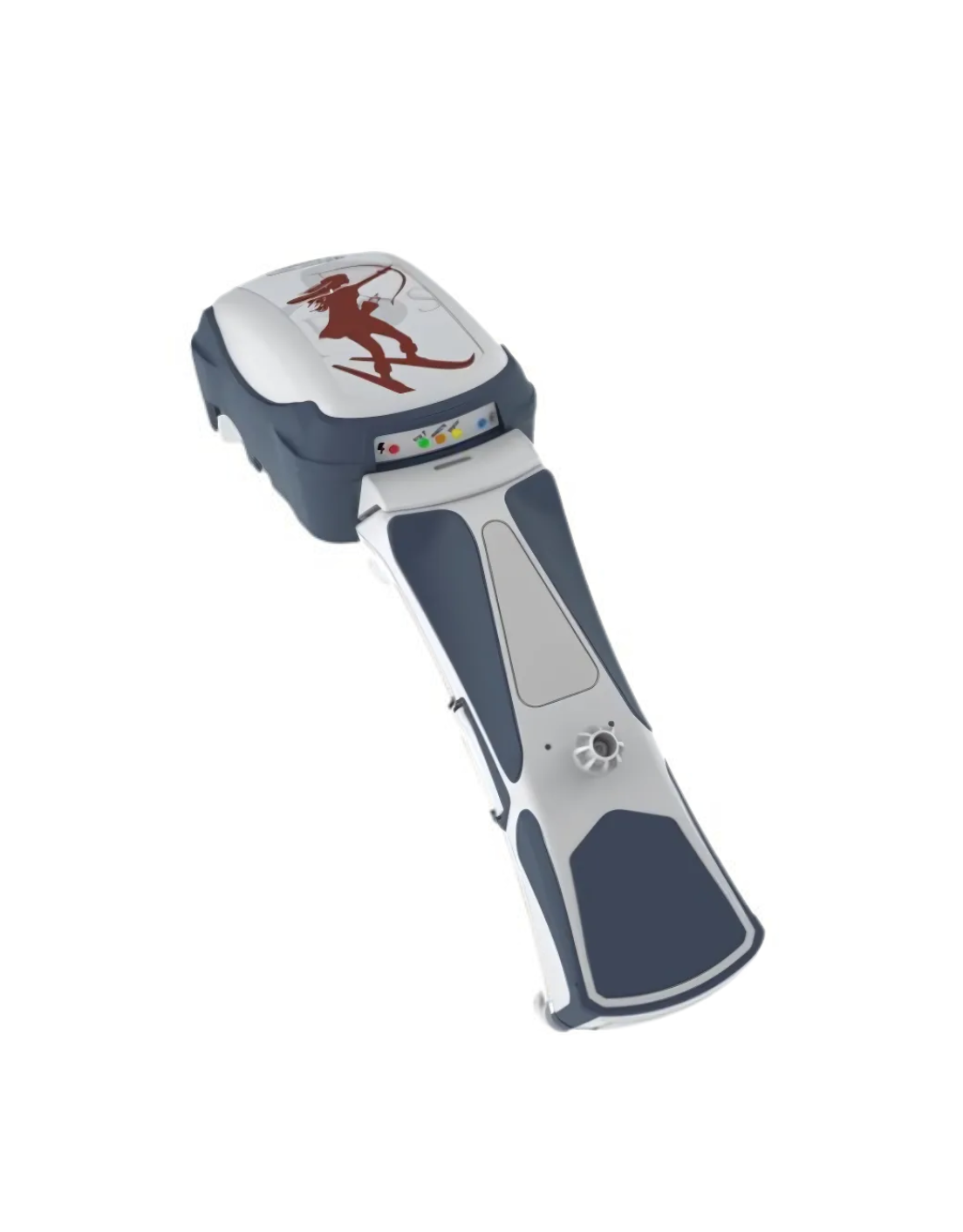

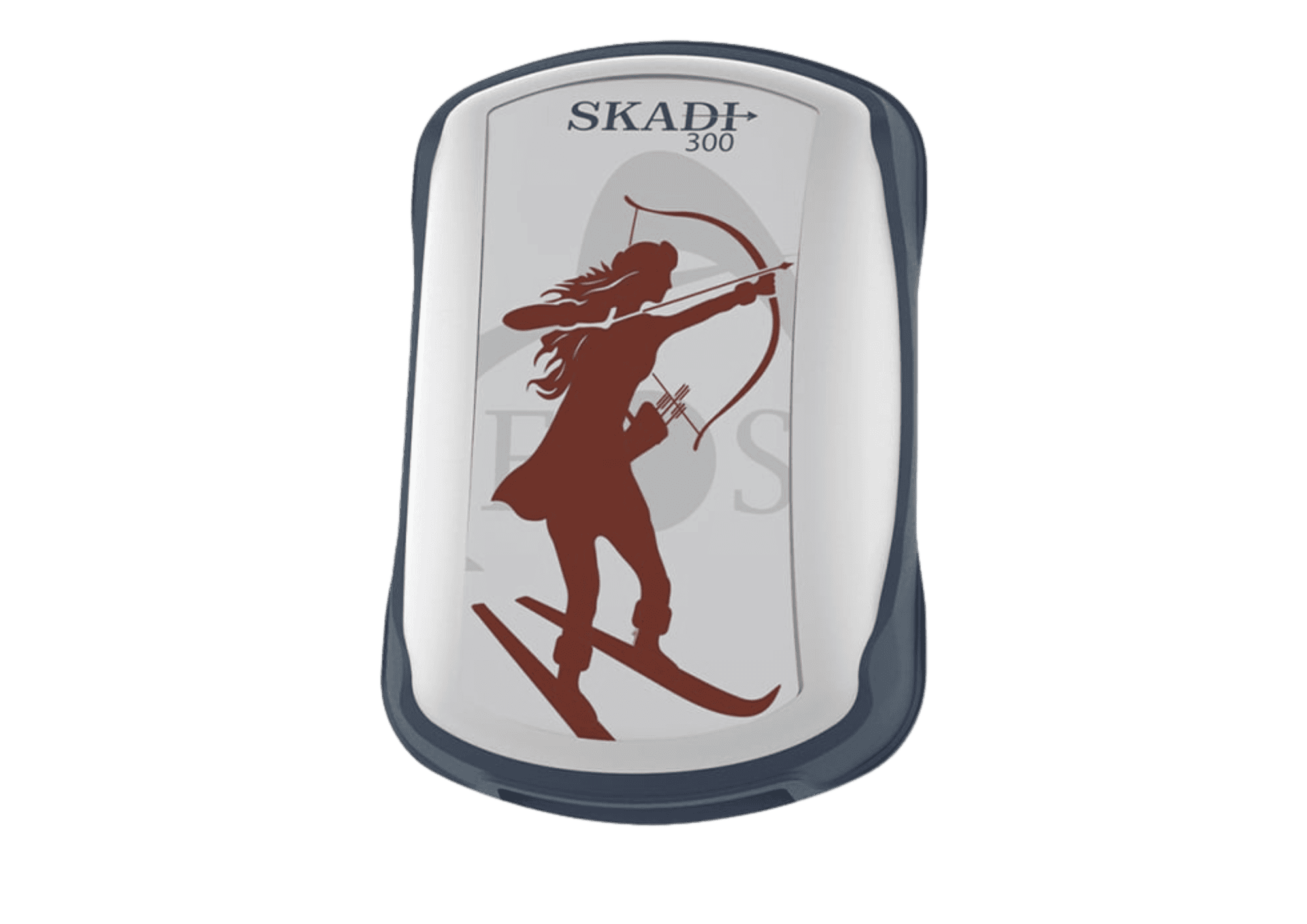

Eos Skadi 300 RTK GNSS Receiver

GNSS RECEIVER FOR SURVEY-GRADE ACCURACY, ANYWHERE. ANYTIME.

The Skadi 300™ delivers exceptional durability as a premium RTK GNSS receiver within Eos Positioning Systems’® Skadi Series™. Supporting comprehensive GNSS constellation coverage with triple-frequency capability and extensive signal compatibility, the Skadi 300 provides an optimal combination of precision and field performance. The integrated SafeRTK® technology maintains survey-grade positioning accuracy during temporary interruptions in RTK correction connectivity. This versatile receiver seamlessly integrates with any RTK network, CORS system, base station, SBAS service, or subscription-based Atlas® corrections, while maintaining device-agnostic compatibility across iOS®, Android™, and Windows® mobile platforms.

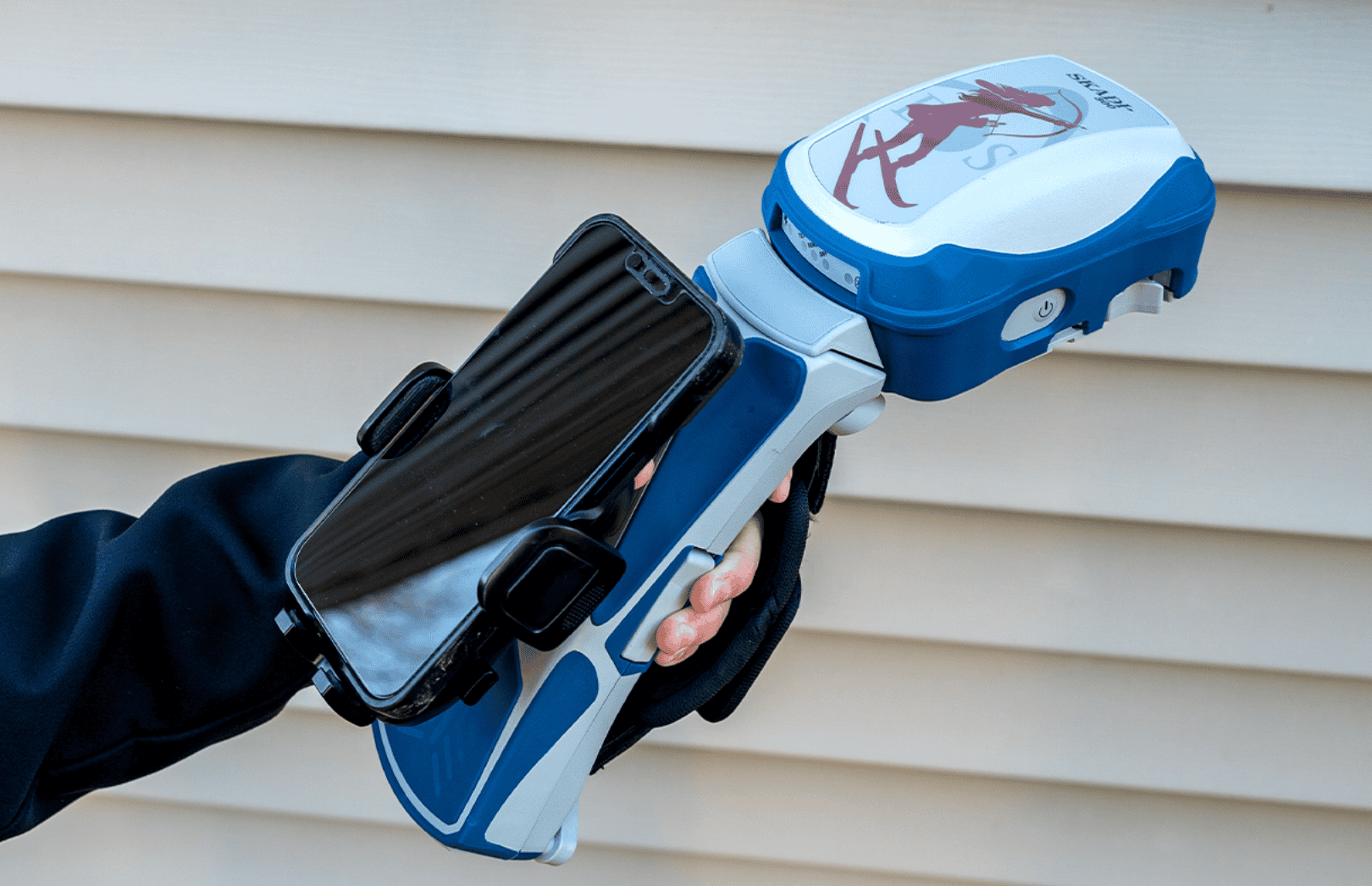

Beyond the precision and reliability inherent in all Eos GNSS systems, the Skadi 300 incorporates exclusive advanced mapping technologies unique to the Skadi Series. The Skadi Tilt Compensation™ feature enhances productivity by eliminating range pole leveling requirements at each measurement point. The system’s integrated antenna design and swappable full-day battery technology accommodate diverse field mounting configurations, including handheld operation, range pole attachment, and backpack integration.



Contact us for product pricing.

Categories: ,
Ports:Bluetooth, USB-C 2.0, Serial
GNSS Signals Received:GPS: L1CA, L1P, L1C, L2P, L2C, L5
GLONASS: G1, G2, G3, P1, P2
Galileo: E1BC, E5a, E5b
BeiDou: B1i, B2i, B2A, B2B
QZSS: L1CA, L1C, L2C, L5
IRNSS: L5
SBAS Support:
3 channel, parallel tracking (with SBAS ranging)
L-Band (Atlas) Support:1 channel
Bluetooth Transmission:Class 1 with 200m typical range
Compliance:FCC, CE, RoHS and Lead-free
Standard Accessories:Skadi 300™ GNSS receiver with integrated antenna
Pole mounting plate for Skadi Series
Phone & Tablet mounting bracket for Skadi Series handles
Skadi Series Li-ion battery pack
USB-C cable & power adapter
Skadi Series hardshell case
Skadi Standard Handle™
Battery:9+ hours (without tilt compensation)
8+ hours (with tilt compensation)
Enclosure Rating:Waterproof, IP-67
Weight:With battery: 610g (1.34 lbs)
With Skadi Standard Handle: 935g (2.06 lbs)
Dimensions:Receiver: 14.2cm x 9.5cm x 6cm (5.6″ x 3.7″ x 2.3″)
Skadi Standard Handle: 26.6cm x 7.6cm x 16.2cm (10.5″ x 3.0″ x 6.4″)
Warranty:Skadi & Smart Handle: 2 year warranty
Battery & Accessories: 6 month warranty
