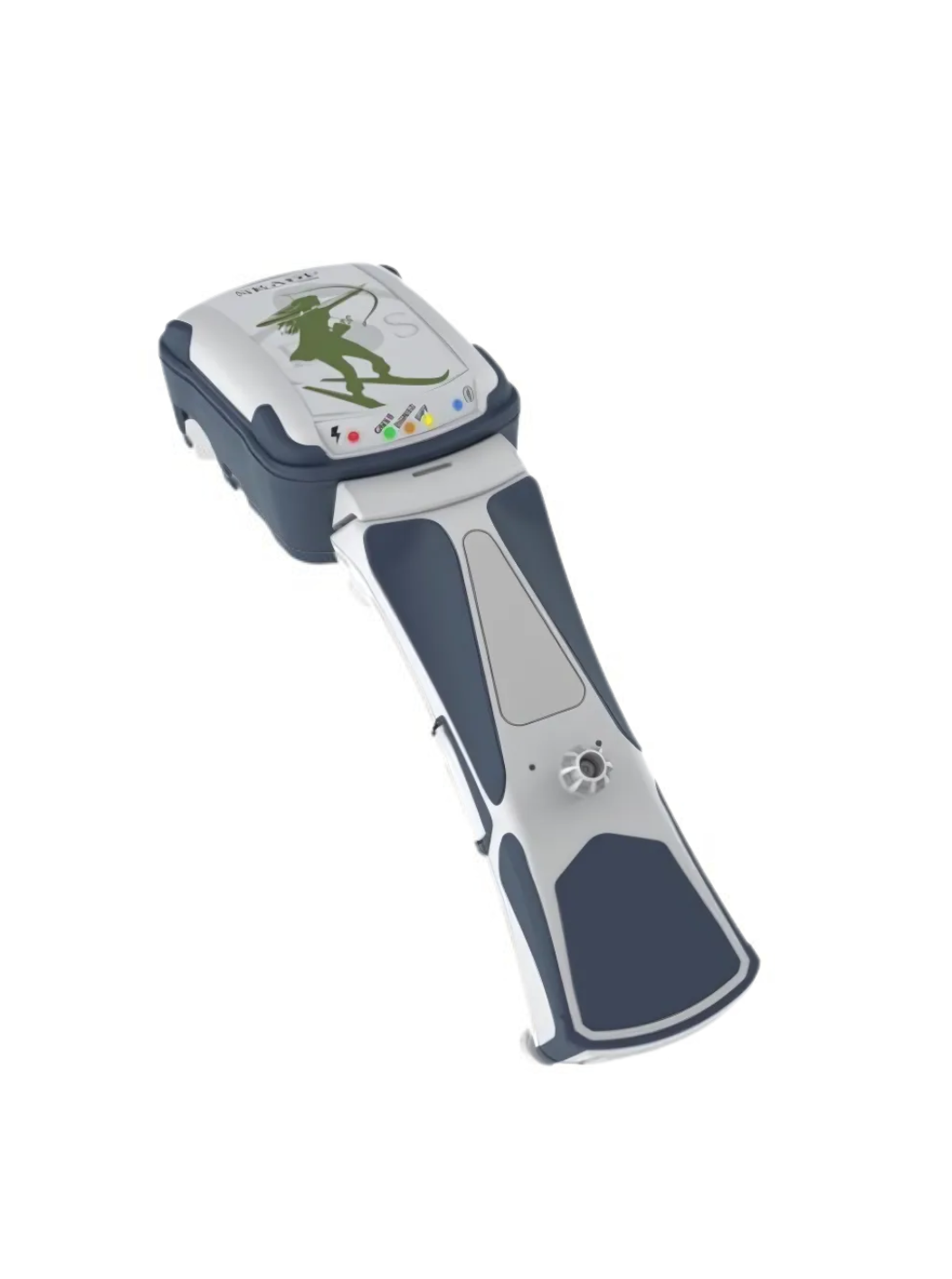

Skadi 100

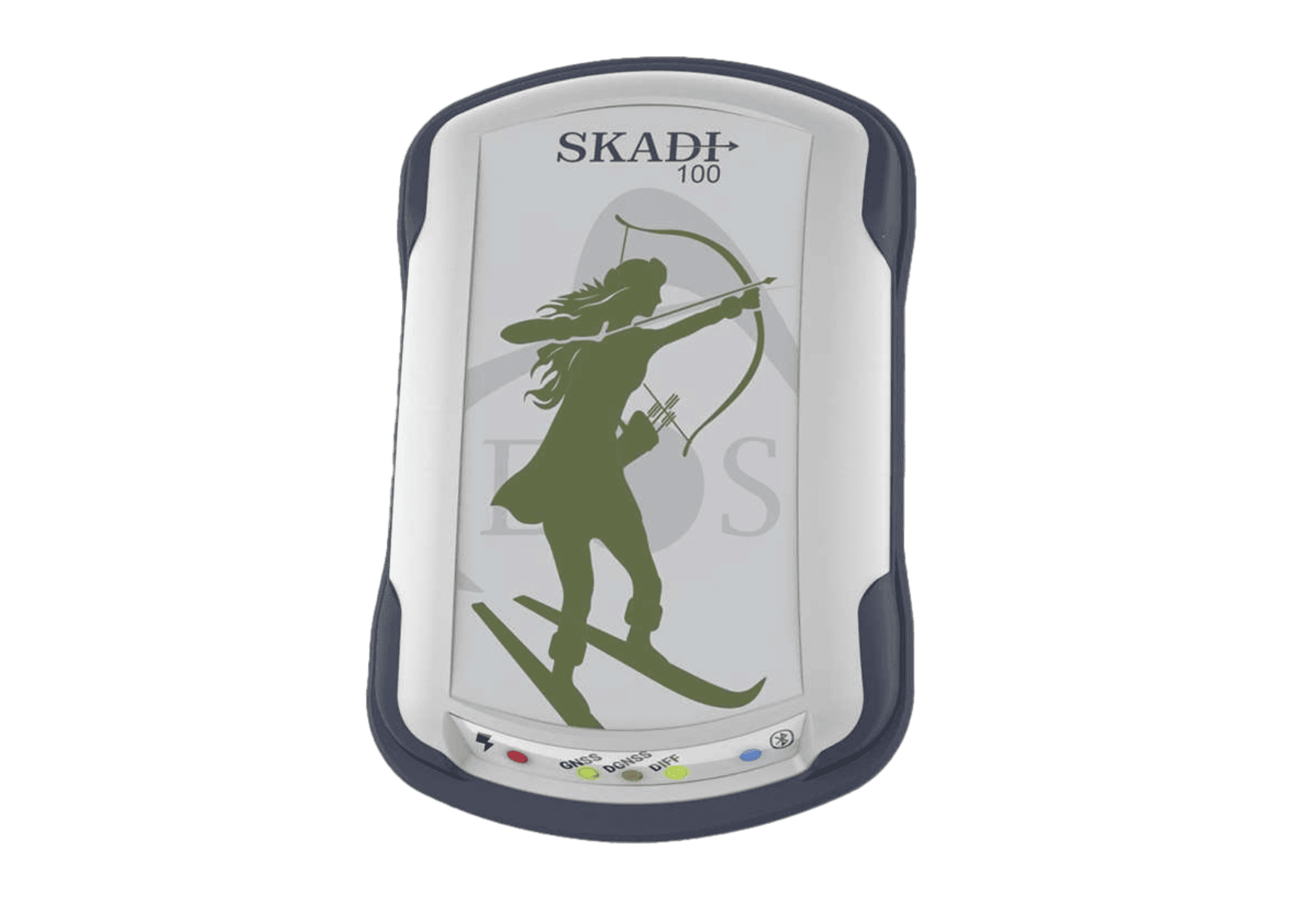

Eos Skadi 100 GNSS Receiver - Image 2

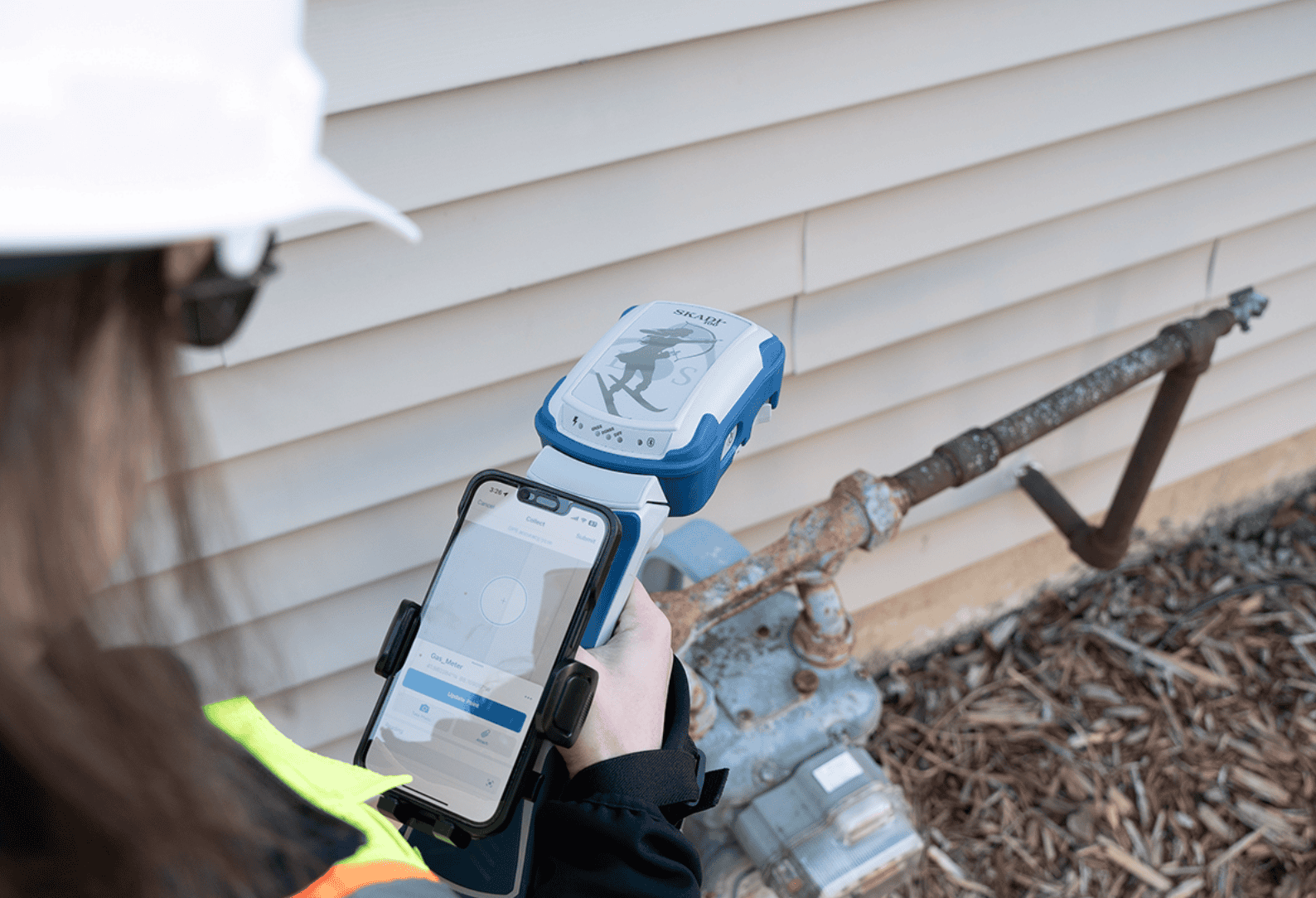

Eos Skadi 100 on field
Product Enquiry »

Eos Skadi 100 GNSS Receiver

PRECISION GNSS RECEIVER FOR HIGH-ACCURACY FIELD APPLICATIONS

The Skadi 100™ represents the foundational model in Eos Positioning Systems’® Skadi Series™ GNSS receivers. Featuring single-frequency capability across all GNSS constellations, the Skadi 100 delivers reliable submeter, mapping-grade positioning using exclusively free satellite-based augmentation system (SBAS) signals. The receiver maintains universal compatibility with iOS®, Android™, and Windows® mobile platforms.

The Skadi 100 does not support the smart handle. The Skadi 100 has an Atlas modem H50 sub metre corrections. Beyond the established precision and reliability synonymous with Eos GNSS technology, the Skadi 100 incorporates exclusive advanced mapping features unique to the Skadi Series portfolio. The system includes an integrated antenna design and swappable all-day battery capability to accommodate diverse field deployment scenarios.



Contact us for product pricing.

Categories: ,
Ports:Bluetooth, USB 2.0, Serial
GNSS Signals Received:GPS: L1CA, L1P, L1C
GLONASS: G1
Galileo: E1BC
BeiDou: B1i
QZSS: L1CA
SBAS Support:
3 channel, parallel tracking (with SBAS ranging)
L-Band(Atlas H50 only) Support:1 channel
Bluetooth Transmission:Class 1, 200m typical range
Compliance:FCC, CE, RoHS and Lead-free
Standard Accessories:Skadi 100 GNSS receiver with integrated antenna
Pole mounting plate for Skadi Series
Phone & Tablet mounting bracket for Skadi Series handles
Skadi Series Li-Ion battery pack
USB-C cable & power adapter
Skadi Series hardshell case
Skadi Standard Handle
Battery:13+ hrs on a single charge
Enclosure Rating:Waterproof, IP-67
Weight:With Battery: 580g (1.28 lbs)
With Skadi Standard Handle: 935g (2.06lbs)
Dimensions:14.2cm x 9.5cm x 5.5cm (5.6″ x 3.7″ x 2.16″)
Warranty:Skadi & Smart Handle: 2 year warranty
Battery & Accessories: 6 month warranty
