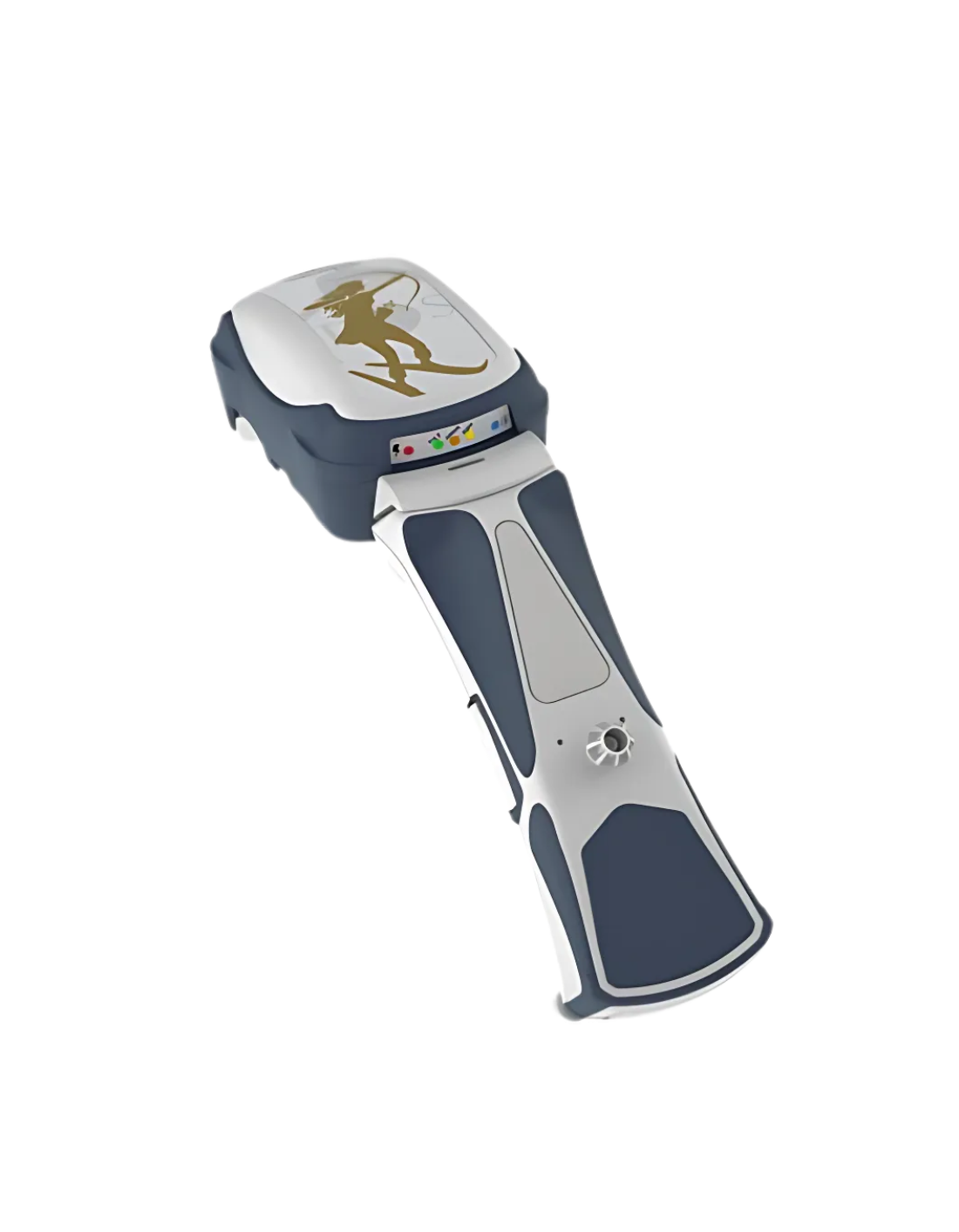

Eos Skadi Gold RTK GNSS Receiver

GNSS RECEIVER WITH MAXIMUM PERFORMANCE, INTELLIGENCE & INTEGRATION

The Skadi Gold™ stands as Eos Positioning Systems’® flagship receiver, delivering unparalleled precision, performance, and versatility. Supporting comprehensive GNSS constellation coverage with all available frequencies, signals, and correction services, this receiver ensures superior accuracy and efficiency even in the most demanding field conditions. Our proprietary SafeRTK® technology maintains positioning precision in challenging environments where cellular connectivity is limited and physical obstacles are present. The system features an integrated antenna design with swappable full-day battery capability.

Maximize operational efficiency with Skadi Tilt Compensation™, which enables point collection without requiring range pole leveling procedures. The tilt compensation is an optional feature. The standard configuration includes the Skadi Standard Handle™, with upgrade options to the Skadi Smart Handle™ for enhanced productivity and safety capabilities. Advanced Smart Handle features include the Invisible Range Pole™ for seamless ground elevation capture and the Extensible Virtual Range Pole™ for remote measurement of nearby ground-level and below-grade assets.



Contact us for product pricing.

Categories: ,
Ports:Bluetooth, USB-C 2.0, Serial
GNSS Signals Received:GPS: L1CA, L1P, L1C, L2P, L2C, L5
GLONASS: G1, G2, G3, P1, P2
Galileo: E1BC, E5a, E5b, E6BC, ALTBOC
BeiDou: B1i, B2i, B3i, B1C, B2A, B2B, ACEBOC
QZSS: L1CA. L1C, L2C, L5, LEX
IRNSS: L5
SBAS Support:3 channel, parallel tracking (with SBAS ranging)
L-Band (Atlas) Support:1 channel
Bluetooth Transmission:Class 1 with 200m typical range
Compliance:FCC, CE, RoHS and Lead-free
Standard Accessories:Skadi Gold™ GNSS receiver with integrated antenna
Pole mounting plate for Skadi Series™
Phone & Tablet mounting bracket for Skadi Series handles
Skadi Series Li-Ion battery pack
USB-C cable & power adapter
Skadi Series hardshell case
Skadi Standard Handle™
Battery:9+ hours (without tilt compensation)
8+ hours (with tilt compensation)
Enclosure Rating:Waterproof, IP-67
Weight:With battery: 610g (1.34 lbs)
With Skadi Standard Handle: 935g (2.06 lbs)
Dimensions:Receiver: 14.2cm x 9.5cm x 6cm (5.6″ x 3.7″ x 2.3″)
Warranty:Skadi and Smart Handle: 2 year warranty
Battery & Accessories: 6 month warranty
